ONLINE STORE - Engine Parts

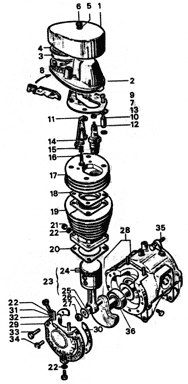

Find the reference number of the cycle part you need on the illustration to the left. Once you have done that, click here or scroll down to select the part from the form below.

To Order:
1. Enter the quantity of the item you desire.
2. Press the "Add to Cart" button.
3. Repeat steps 1 and 2 for additional items.
4. At any time you may press the "CART" button at the top of the page to view the items in your shopping cart.
5. When you are finished, click the "CHECKOUT" button at the top of the page.
6. You may choose to order online, or print your order to send it by Mail or Fax.
- The credit card section of the online order form is uses a secure server for your protection.

Item Item Code PriceQty Help using this page
Air Filter Cover (Ref 1) SPM90837 $15.43
Air Filter Base (Ref 2) SPM90820 $31.59
Air Filter (Ref 3) SPM90758 $4.36
Air Filter Fixing Ring (Ref 4) SPM90759 $3.19
Washer M6 (Ref 5) SPM91525 $1.31
Screw M6x45 (Ref 6) SPM90841 $1.31
Decompressing Lever (Ref 8) SPM91263 $1.31
Cover Fixing Screw M6x45 (Ref 9) SPM90421 $1.71
Space Holder (Ref 10) SPM90786 $1.42
Air Filter House Suspension Bridle (Ref 11) SPM90980 $2.94
Sparking Plug (Ref 12) SPM93106 $7.78
Ignition Cable Fixing Nut M4 (Ref 13) SPM90848 $1.31
Nut for Valve (Ref 14) SPM90859 $3.13
Nut for Spring (Ref 15) SPM90792 $1.42
Valve (Ref 16) SPM90858 $4.74
Cylinder Head (Ref 17) SPM90821 $36.99
Cylinder Head Gasket (Ref 18) SPM90437 $3.12
Cylinder (Ref 19) SPM90496 $101.76
Cylinder Base-Gasket (Ref 20) SPM90016 $3.21
Cylinder Fixing Nut M6 (Ref 21) SPM90000 $1.31
Grower M6 (Ref 22) SPM91361 $1.31
Piston Crank-Rod with Crank-Pin Bush (Ref 23) SPM90497 $76.34
Piston Ring 39, 5x1, 7 (3 are required) (Ref 24) SPM90817 $6.73
Crank-Pin Bush (Ref 25) SPM90849 $6.64
Space Holder Ring to Crank-Shaft (Ref 26) SPM90024 $1.31
Crank-Pin Nut M10x1 (Ref 27) SPM90867 $1.31
Crank Case with Crank-Shaft (Ref 28) SPM91342 $171.67
Crank Case Cover with Drop-Bolt (Ref 29) SPM90413 $39.84
Gasket to Crank Case (Ref 30) SPM90414 $3.20
Washer M6 (Ref 31) SPM90019 $1.31
Bolt for Cylinder (Ref 32) SPM90015 $1.31
Screw M6x20 for Cylinder (Ref 33) SPM90415 $1.31
Screw M6x15 for Cylinder (Ref 34) SPM90679 $1.31
Screw M6x45 (Ref 35) SPM90421 $1.71
Bearing 6203 RS1 (Ref 36) SPM90073 $19.78
Piston - only (Ref 40) SPM91297 $39.95
Piston Fixing Arm, with Ring (Ref 41) SPM93200 $65.63
Decompressing Valve Set (Ref 14-16) SPM93059 $8.63
Piston Complete (Ref NR) SPM93062 $59.95
Fixing Ring to Piston-Pin (Ref NR) SPM90055 $1.33
Piston-Pin (Ref NR) SPM90185 $5.88
Rebuilt Standard Engine (Ref NR) SPM90568 $579.95
Gasket Set (Ref NR) SPM91013 $17.44
Lipped Washer- Oil Seal (Ref NR) SPM91456 $3.22
Cylinder Gasket Set (Ref NR) SPM93060 $7.03
Label for Engine Cover (Ref NR) SPM93105 $4.36
Engine Fixing Set - 5, 6, 9, 10, 21, 22, 31-35 SPM93061 $25.89
